Products Description
Automatic Hydraulic Hose Crimping Machines are a kind of cold extrusion equipment used to connect rubber hose and pipe joints. It uses advanced hydraulic system to realize crimping function. This machine structure includes frame, hydraulic system, fixture and pressure sensor and other components, through the hydraulic principle to reliably complete the installation of hose fasteners.
The working principle is simple and effective: the user places the hose fastenings on the machine fixture, and after starting the equipment, the hydraulic pump begins to provide the required pressure. The hydraulic system transfers the pressure to the pressure sensor on the fixture, thus firmly pressing the hose fastener to complete the connection process.
Automatic Hydraulic Hose Crimping Machines are widely used in construction, manufacturing, aviation, agriculture and other fields because of their efficient and high-quality working mode. It improves work efficiency and connection quality, ensures a solid and reliable connection, and reduces the risk of leakage and failure, so it is favored by enterprises.
With the continuous progress of technology, the function and performance of this Automatic Hydraulic Hose Crimping Machines are also constantly improving, providing more reliable connection solutions for all walks of life.

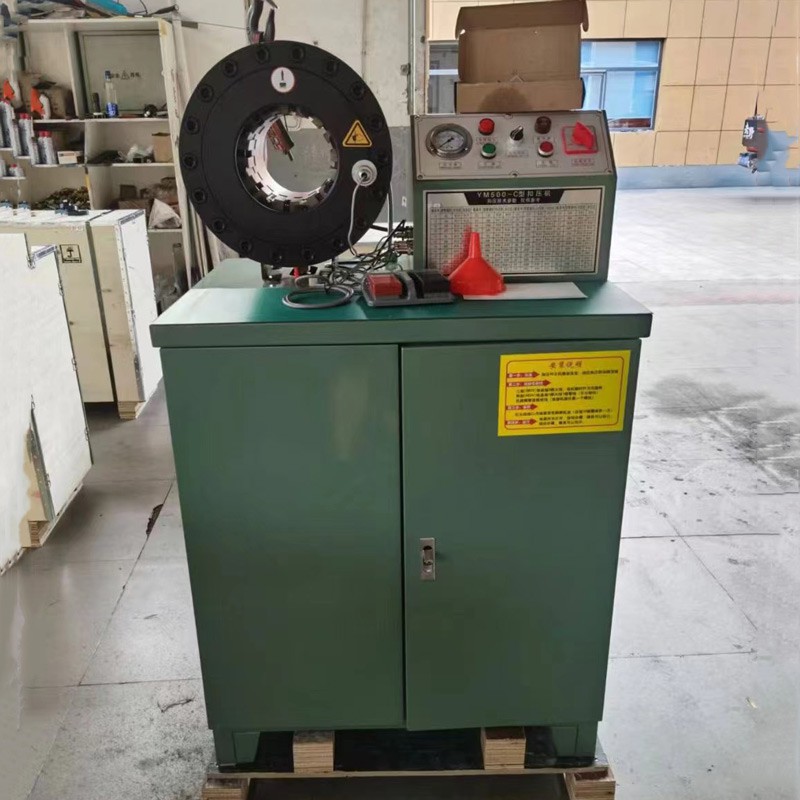

Product picture
Product specification
|
Holding range |
4~51mm |
Clamping control accuracy |
0.02mm |
|
Number of standard tooling |
10 sets (optional) |
Tensioning period |
10s |
|
Die expansion |
+35mm |
System pressure |
31.5Mpa |
|
Main die length |
80mm |
Motor power |
3kw/4kw |
Product maintenance
Automatic Hydraulic Hose Crimping Machines maintenance
1. The hydraulic oil of the oil tank needs to be replaced regularly according to the frequency of use of the equipment or the working environment, and it is recommended to replace it once a year
2. Often inject anti-wear lubricating oil into the moving surface of the mold seat.
3. Non-automatic Hydraulic Hose Crimping Machines during working hours, please cover the dust cover to prevent debris from entering the mold seat.
4.Automatic Hydraulic Hose Crimping Machines It is recommended to tighten the head screws every three months.
